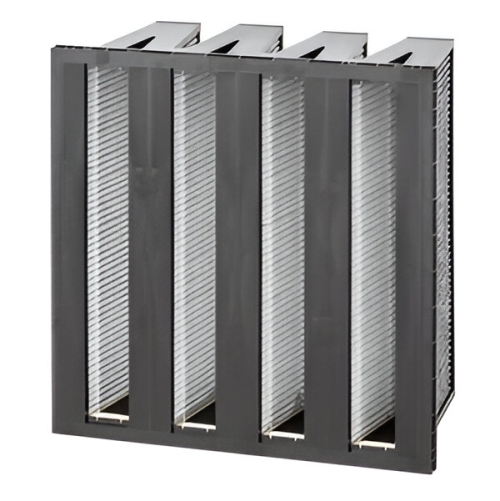

CityCarb I

A compact V-Bank air filter with a particulate and molecular media to remove solid and gaseous contaminants in one filter stage. It can be used in existing installations to remove medium concentrations of most external and internal pollutants with ePM1 70% efficiency according to ISO16890.

ENQUIRY!
Categories: , , , ,
Brand:Camfil

Description

A compact V-Bank air filter with a particulate and molecular media to remove solid and gaseous contaminants in one filter stage. It can be used in existing installations to remove medium concentrations of most external and internal pollutants with ePM1 70% efficiency according to ISO16890.

  • “2-in-1” filtration solution; particulate and molecular
  • Removal of solid and gaseous contaminants in one filter stage
  • Ideal for filtering moderate concentrations of most external and internal source pollutants
  • Can be used to upgrade existing installations
  • Classified according to ISO 10121-3

Additional information

Application

Particle and corrosive acids removal in museums, art galleries, libraries etc
Filter Frame

Plastic moulded
Media

Synthetic, Activated Carbon
Max temperature (°C)

50
Relative Humidity

30% – 70%
Max final pressure drop, EN 13053

Initial pressure drop + 100 Pa or initial pressure drop x3 (whichever is lower)
Dimension standard

Filter front dimensions according EN 15805
Installation options

Front and side access housings and frames are available.
Max Airflow

1,25 x nominal flow
