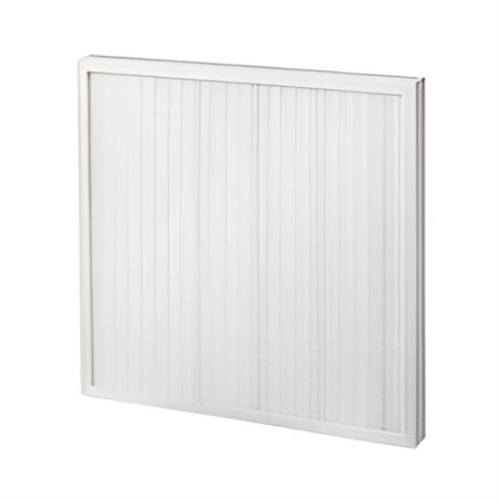

EcoPleat G

A pleated panel filter with plastic frame suitable for environments with high humidities. With its low pressure drop and high dust holding capacity, lowest labour cost thanks to less frequent filter changes can be achieved. This filter comes in ePM1 as well as ePM10 efficiencies according to ISO16890.

Brand:Camfil

Description

A pleated panel filter with plastic frame suitable for environments with high humidities. With its low pressure drop and high dust holding capacity, lowest labour cost thanks to less frequent filter changes can be achieved. This filter comes in ePM1 as well as ePM10 efficiencies according to ISO16890.

  • Ultra compact panel filter with ePM1 and ePM10 efficiencies
  • Low pressure drop thanks to large surface area
  • Long operating life with large dust holding capacity
  • Less frequent changes
  • Fully combustible plastic frame

Additional information

Application

Air conditioning or industrial processing systems and for mini air conditioning systems, individual modules, ventilation equipment

Filter Frame

ABS

Media

Glass fiber

Max temperature (°C)

70ºC

Relative Humidity

100%

Separator

Hot-melt

Dimension standard

Filter front dimensions according EN 15805

Installation options

Front and side access housings and frames are available.

Max Airflow

1,1 x nominal flow

Max. final pressure drop

350 Pa

Filter Class ASHRAE

MERV 11
