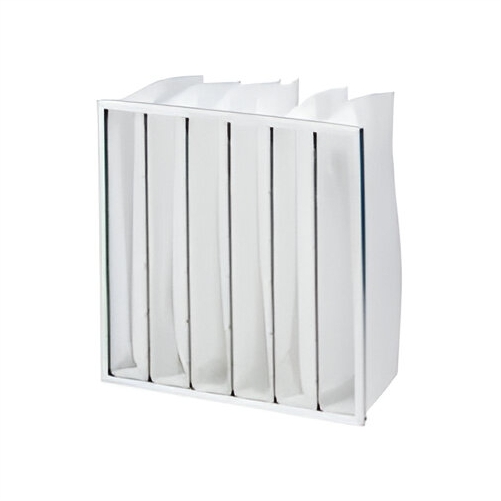

Bag filter for prefiltration and exhaust applications with steel frame. Hi-Cap provides an optimal protection of the further filtration stages in HVAC system. Available in various bag lengths in ISO Coarse 60% efficiency class according to ISO16890.
Bag filter for prefiltration and exhaust applications with steel frame. Hi-Cap provides an optimal protection of the further filtration stages in HVAC system. Available in various bag lengths in ISO Coarse 60% efficiency class according to ISO16890.
| Application | Prevention of dust and dirt build up on heating/cooling coils within ventilation systems |
|---|---|
| Filter Frame | Galvanised steel |
| Media | Synthetic |
| Max temperature (°C) | 70°C |
| Relative Humidity | 100% |
| Max final pressure drop, EN 13053 | Initial pressure drop + 50 Pa or initial pressure drop x3 (whichever is lower) |
| Dimension standard | Filter front dimensions according EN 15805 |
| Installation options | Front and side access housings and frames are available, Type 8 and FC Housings |
| Max Airflow | 1,25 x nominal flow |
| Comment | Fire rating: DIN 53438 class F1 |
