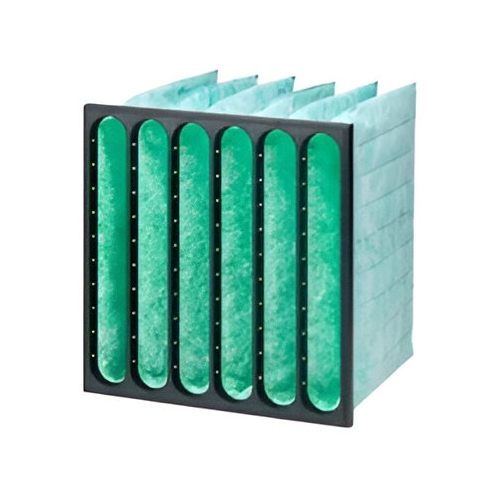

The entry level range of glass fiber bag filters with a reduced amount of bags with plastic frame. Thanks to the conical and tapered bag design, these filters come with the optimum balance between price and total cost of ownership. Available in all efficiencies according to ISO16890.
The entry level range of glass fiber bag filters with a reduced amount of bags with plastic frame. Thanks to the conical and tapered bag design, these filters come with the optimum balance between price and total cost of ownership. Available in all efficiencies according to ISO16890.
| Application | Air conditioning applications and as pre filters for clean rooms. |
|---|---|
| Filter Frame | Plastic moulded |
| Media | Glass fiber |
| Max temperature (°C) | 70ºC |
| Relative Humidity | 100% |
| Max final pressure drop, EN 13053 | Initial pressure drop + 100 Pa or initial pressure drop x3 (whichever is lower) |
| Dimension standard | Filter front dimensions according EN 15805 |
| Installation options | Front and side access housings and frames are available |
| Max Airflow | 1,25 x nominal flow |
