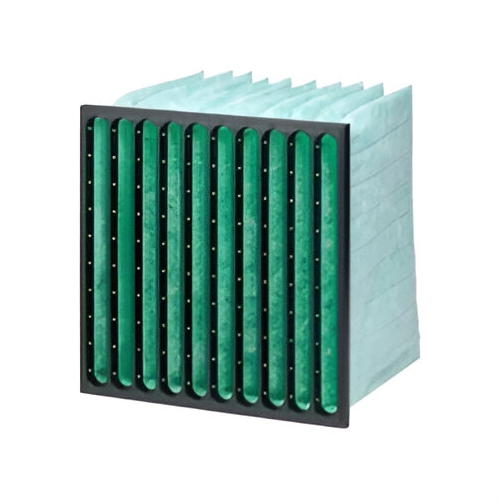

Hi-Flo XLT

The premium range of glass fiber bag filters with plastic frame. These filters have the highest energy efficiency and longest operating life. With their low pressure drops and high dust holding capacites, lowest labour cost thanks to less frequent filter changes can be achieved. Available in all efficiencies according to ISO16890.

ENQUIRY!
Categories: ,
Brand:Camfil

Description

The premium range of glass fiber bag filters with plastic frame. These filters have the highest energy efficiency and longest operating life. With their low pressure drops and high dust holding capacites, lowest labour cost thanks to less frequent filter changes can be achieved. Available in all efficiencies according to ISO16890.

  • Lowest energy consumption and initial pressure drop
  • Extended operating life with the best total cost of ownership (TCO)
  • Lowest labour cost thanks to less frequent filter changes
  • Conical and tapered pocket shape for improved air flow
  • Fully incinerable with the plastic frame

Additional information

Application

Air conditioning applications and as pre filters for clean rooms.
Filter Frame

Plastic moulded
Media

Glass fiber
Max temperature (°C)

70ºC
Relative Humidity

100%
Max final pressure drop, EN 13053

Initial pressure drop + 100 Pa or initial pressure drop x3 (whichever is lower)
Dimension standard

Filter front dimensions according EN 15805
Installation options

Front and side access housings and frames are available
Max Airflow

1,25 x nominal flow
